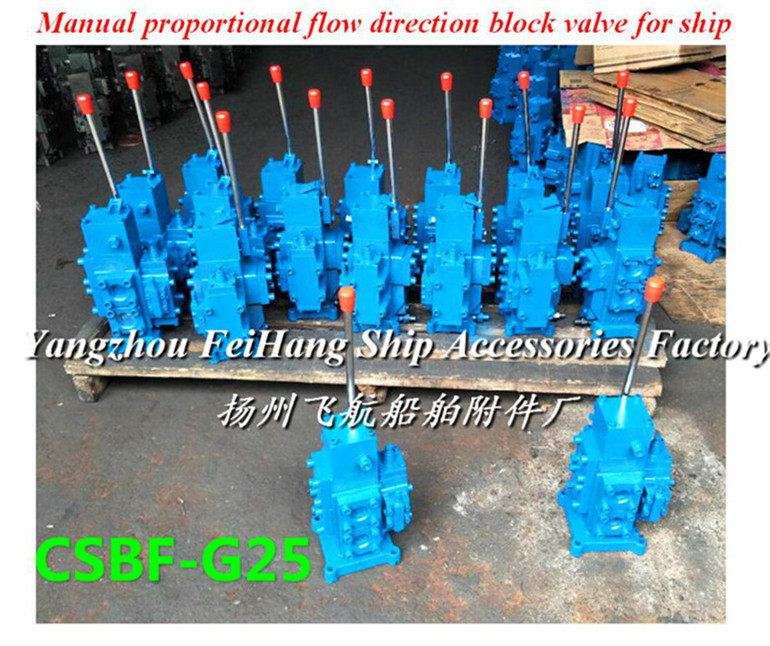

    MANUAL CONTROLLED VALVE) FOR HYDR. MOTOR Model: CSBF -H-G25

    Ask Lasest Price
    Brand Name : Fei Hang
    Certification : Inspection Report
    Model Number : A,AS,B,BS
    Price : Negotiable
    Delivery Time : The 3 day
    Payment Terms : Advance payment and delivery
    Supply Ability : 1000platform/day
    • Product Details
    • Company Profile

    MANUAL CONTROLLED VALVE) FOR HYDR. MOTOR Model: CSBF -H-G25

    MANUAL CONTROLLED VALVE) FOR HYDR. MOTOR

    Model: CSBF -H-G25


    CSBF-H-G25 marine manual proportional flow direction compound valve ordering instructions:
    If you need to replace this manual proportional composite valve, and because of the long time, the nameplate is not clear, please according to the following chart measurement, so that it is convenient to distinguish this ship manually proportional flow valve nominal diameter
    CSBF-H-G25 manual proportional flow direction compound valve structure size:
    According to the middle spool valve function, the nominal ratio DN25 is manually proportional composite valve, usually marked as:
    Marine manual proportional directional compound valve CSBF-G25 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is M type of ship manually proportional flow direction compound valve
    Marine manual proportional flow directional compound valve CSBF-G25-H CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is H type of ship manually proportional flow direction compound valve
    Marine manual proportional flow composite valve CSBF-G25-O CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is O type of ship manually proportional flow direction compound valve
    CSBF-G25-Y marine manual proportional directional compound valve CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is Y type of ship manually proportional flow direction compound valve
    Marine manual proportional directional compound valve CSBF-25-K CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is K type of ship manually proportional flow direction compound valve
    CSBF-G25-P marine manual proportioning directional return valve CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is P type of ship manually proportional flow direction compound valve
