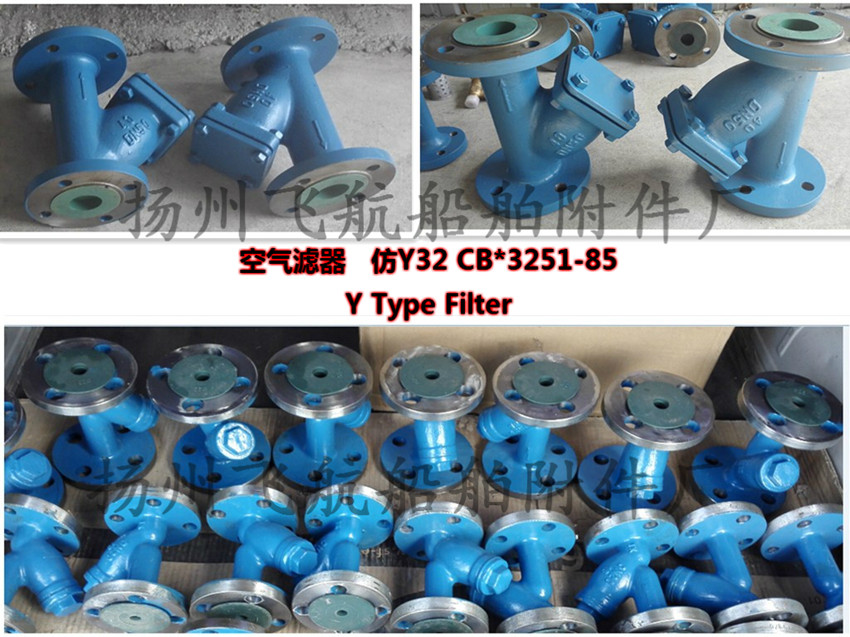

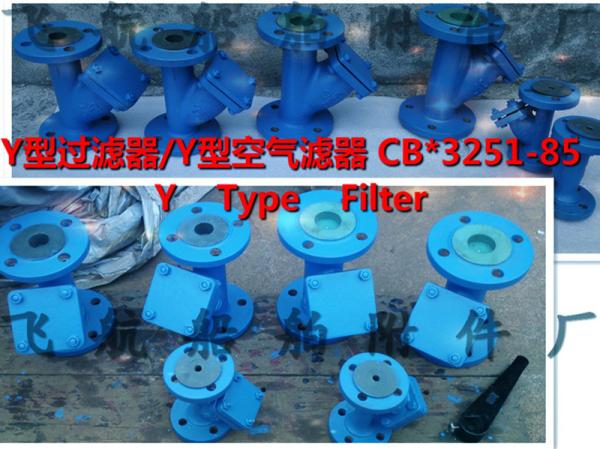

Type Y filter / marine Y type filter /Y type bronze filter CB*3251-85

Definition of CB*3251-85 type filter / marine /Y type Y type filter Y type bronze filter:
This product is applicable to the ship PN 1.6Mpa compressed air, water, steam, oil, fuel oil and lubricating oil system, hydrophobic.
Product design and manufacturing is the reference ship industry standard CB3251-85, combined with the requirements of modern ship retrofit design
The material of the filter body is cast steel ZG230-450H, the filter material is 1Cr18Ni9Ti;
General water network for ventilation network for 18~30 mesh, 10~100 mesh, 100~480 mesh oil through network.
Type Y filter / marine Y type filter /Y type bronze filter CB*3251-85 mark
Y type air filter DN32 imitation CB*3251-85 Y32
Y type air filter DN40 imitation CB*3251-85 Y40
Y type air filter DN50 imitation CB*3251-85 Y32
Y type air filter DN65 imitation Y65CB*3251-85
Y type air filter DN20 imitation CB*3251-85 Y20

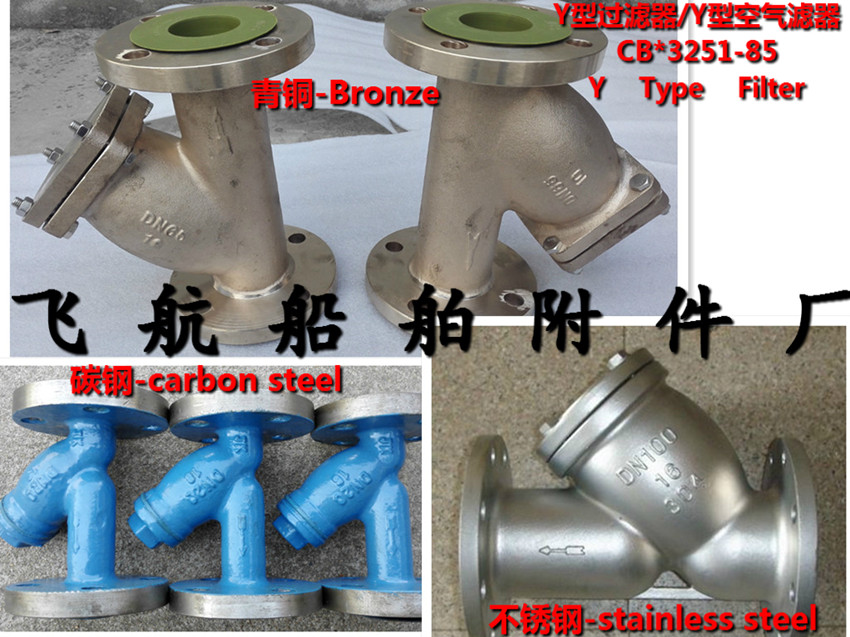

Type Y filter / marine Y type filter /Y type bronze filter CB*3251-85 material:

Type Y filter (carbon steel)
Type Y filter (stainless steel)
Type Y filter (bronze material)
Type Y filter / marine type Y filter type /Y bronze filter CB*3251-85 flange dimensions:
Type Y - flange connection size according to GB569 filter;
Type YS - flange connection size according to GB2501 filter;
Non standard: ANSI 150LB (American Standard flange)
Y type filter / ship type Y filter /Y type bronze filter CB*3251-85 parameters see table
form
Nominal pressure type PN (MPa) nominal diameter DN (mm) flange connection standard
Y = 1.6Mpa 15-200 GB569-65
GB2501-89 YS
