CB/T615-1995 Shipbuilding -- Bilge suction grille

Marine sea - sea suction grille grille is mixed in the water in the suction filter debris, to prevent debris blocking water heat exchanger and lubricating oil heat exchanger, while avoiding debris around the cooling water pump etc..

CB/T615-1995 marine suction grille - bottom suction grille - submarine door grille - submarine door suction grille installation methods and matters needing attention:

1: to consider practicality, that is, relatively smooth sea water into the submarine valve box

2: next, consider the beauty, that is, to expose the outer part of the plate as little as possible, and neat.

In the design stage of high low sea box as far as possible to avoid online type over the place, also increased 50~100mm margin in the border on the sea, in the sea after the end of the door frame welding plate protruding place cut flat grid net circulation area is greater than the sea water pipe

CB/T615-1995 suction grille for shipbuilding - bilge suction grille usually marked as "suction grille":

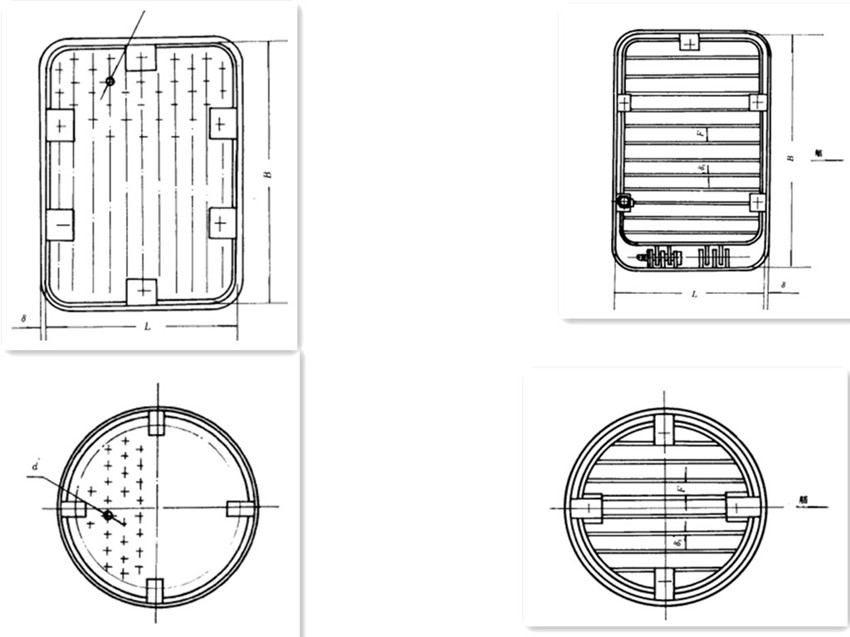

• the rectangular bar suction grille of nominal diameter DN100 is indicated as:

Suction grille - bilge suction grille - Marine suction grille A100 CB/T615-1995

• the rectangular bar suction grille of nominal diameter DN150 is indicated as:

Hot dip galvanized grille - bilge suction grille - Marine suction grille A150 CB/T615-1995

• the rectangular bar suction grille of nominal diameter DN200 is indicated as:

Suction grille - bilge suction grille - Marine suction grille A200 CB/T615-1995

• the rectangular bar suction grille of nominal diameter DN300 is indicated as:

Suction grille - bilge suction grille - marine hot dip galvanized suction grille A300 CB/T615-1995

• sea valves nominal diameter of DN50, grille seat height H is 80 of the circular bar suction grille as:

Suction grille - bilge suction grille - Marine suction grille B50-H80 CB/T615-1995

• sea valves nominal diameter of DN65, grille seat height H is 80 of the circular bar suction grille as:

Suction grille - bilge suction grille - Marine suction grille B65-H80 CB/T615-1995

• sea valves nominal diameter of DN100, grille seat height H is 90 of the circular bar suction grille as:

Suction grille - bilge suction grille - Marine suction grille B100-H90 CB/T615-1995

• sea valves nominal diameter of DN200, grille seat height H is 100 of the circular bar suction grille as:

Suction grille - bilge suction grille - Marine suction grille B200-H100 CB/T615-1995

• suction grille, sea pass, diameter DN65, indicated as:

Suction grille - bilge suction grille - Marine suction grille C65 CB/T615-1995

• suction grille, sea pass, diameter DN80, indicated as:

Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995
