PEOPLE'S REPUBLIC OF CHINA SHIPBUILDING INDUSTRY STANDARD

CB/T425-1994

CRUDE OIL FILTER - LOW PRESSURE CRUDE OIL FILTER - DOUBLE LOW PRESSURE CRUDE OIL FILTER

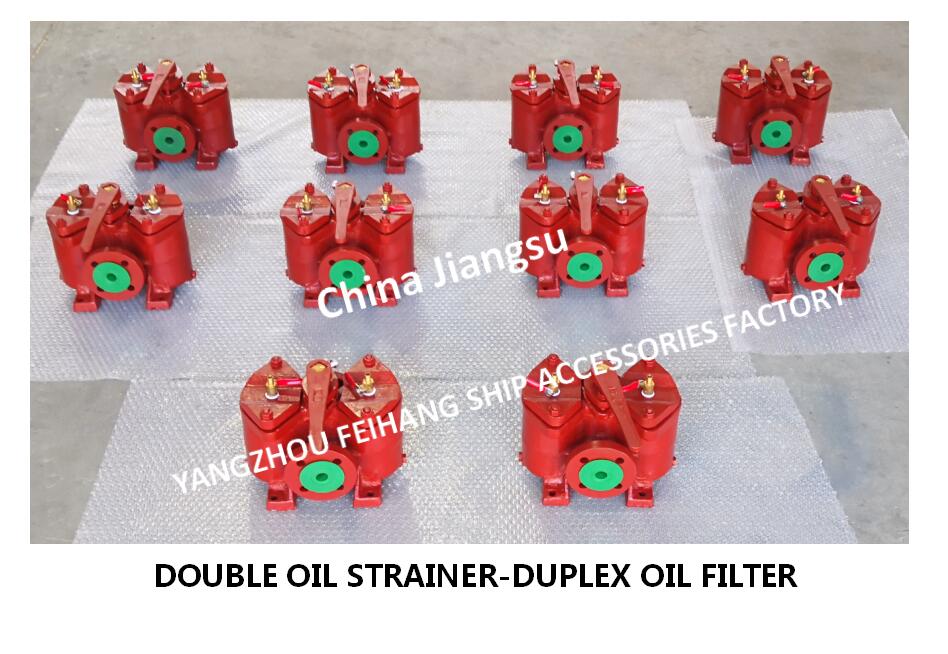

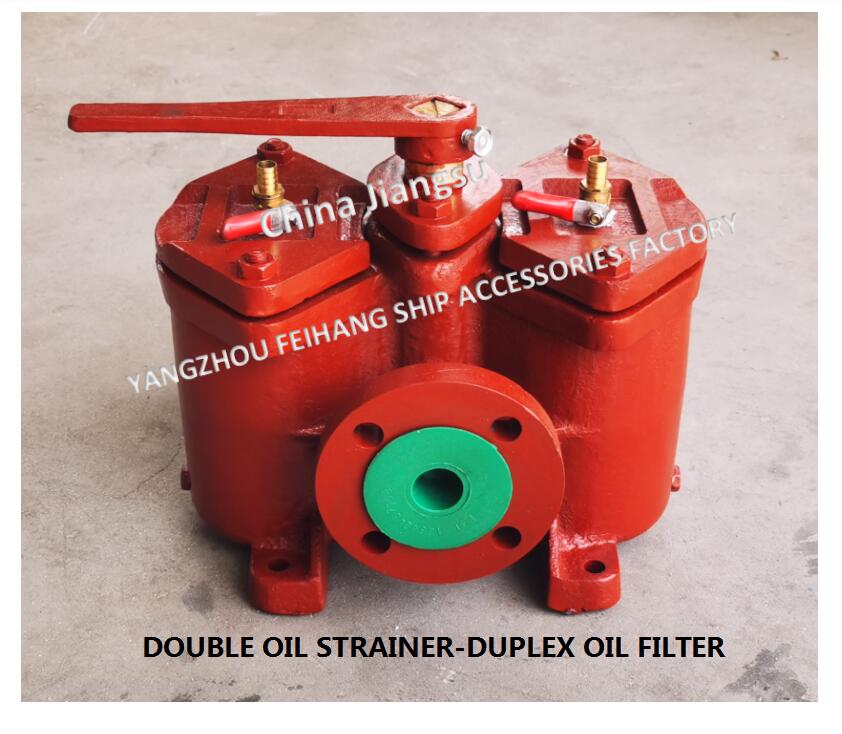

The double low-pressure crude oil filter, also known as the double switchable filter, is composed of two filter barrels in parallel or in series, and the valve core is opened through the handle to achieve:

The two filter cartridges are used alternately to replace the filter element without stopping, or both machines can work at the same time. (i.e. 24-hour non-stop continuous operation)

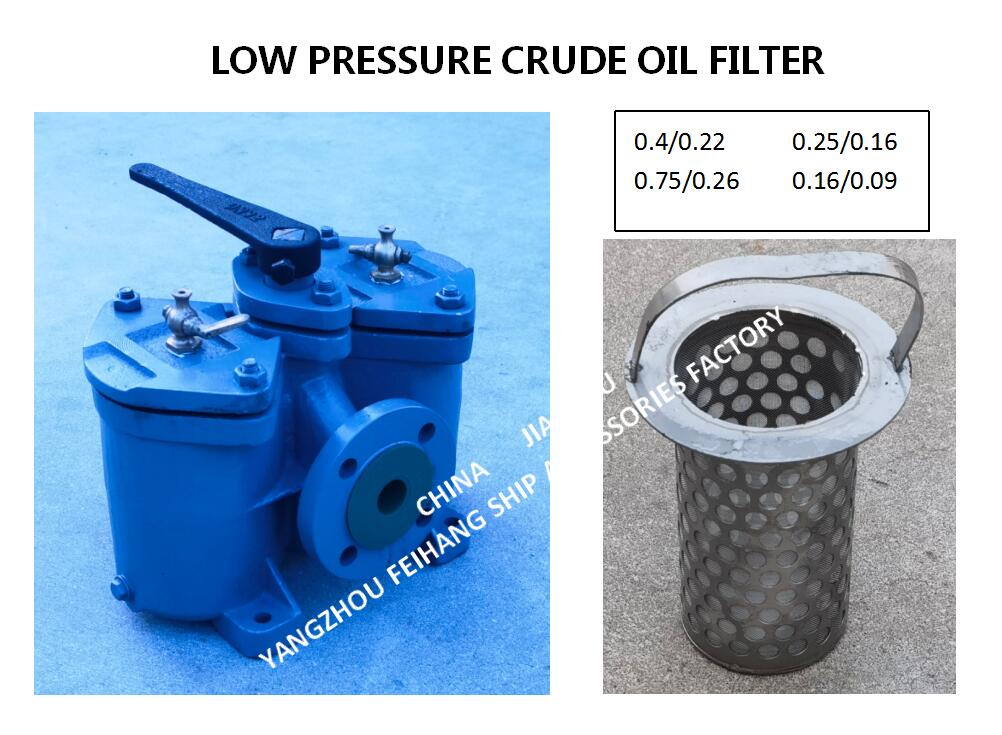

Low Pressure Crude Oil Filter - Duplex Low Pressure Crude Oil Filter Filter - Flanged Cast Iron Low Pressure Crude Oil Filter

MODEL:AS32 CB/T425-1994

The model is AS type - straight-through type, flange standard is GB2501 PN6, nominal diameter is 32mm, the body material is HT200 gray cast iron, the internal filter cartridge is stainless steel 304 material, the implementation standard is the national standard CB/T425-1994 fuel line, and the double low-pressure crude oil filter for the oil pipeline.

According to the filtration accuracy, the DN32 marine low pressure crude oil filter, the double low pressure crude oil filter can be selected as follows:

DN32, filter size is 0.25/0.16, flange connection size according to GB2506 PN6 low pressure crude oil filter marked as: lubricating oil separator outlet duplex low pressure crude oil filter AS4032-0.25/0.16 CB/T425-94
DN32, filter size is 0.75/0.26, flange connection size according to GB2506 PN6 low pressure crude oil filter marked as: oil purifier outlet duplex oil filter AS4032-0.75/0.26 CB/T425-94
DN32, filter size is 0.40/0.22, flange connection size according to GB2506 PN6 low pressure crude oil filter marked as: fuel separator outlet duplex coarse oil filter AS4032-0.40/0.22 CB/T425-94
DN32, filter size is 0.16/0.09, flange connection size according to GB2506 PN6 low pressure crude oil filter marked as: diesel oil dispenser imported duplex oil filter AS4032-0.16/0.09 CB/T425-94

Yangzhou Feihang Ship Accessories Factory is a production enterprise specializing in marine pipe fittings, marine hydraulic valve parts and marine interior armored products.

The marine accessories produced by our company are complete in specifications, such as cast iron, cast steel, bronze and stainless steel, which are widely used in ships, oil and offshore platforms.

All products implement one-stop production line operation, and strictly implement the ISO9001-2000 international quality management system standards, and carry out standardized production and quality inspection.

Companies adhering to the "integrity management, mutual benefit, and common development" business purposes and "excellent products, sincere service, customer satisfaction," the quality management policy, has won the trust of our customers, is now with a number of shipyards, ship owners, and ships The unit has established long-term cooperative relationships, and its products are sold well all over the country and exported to Singapore, Taiwan, Japan, India, South Africa and other countries and regions. And has won the praise of many ship owners at home and abroad. In order to meet the needs of the market and the continuous expansion of the company's business, we are moving towards the goal of “more comprehensive, more professional and better quality” and strive to build one of the ship accessory suppliers recognized by more customers at home and abroad.
