FILTER ELEMENTS FOR MARINE CAN WATER FILTER

Suitable for use with marine can water filter based on JIS F-7121 specification.

Made of stainless steel with light weight and tough structure.

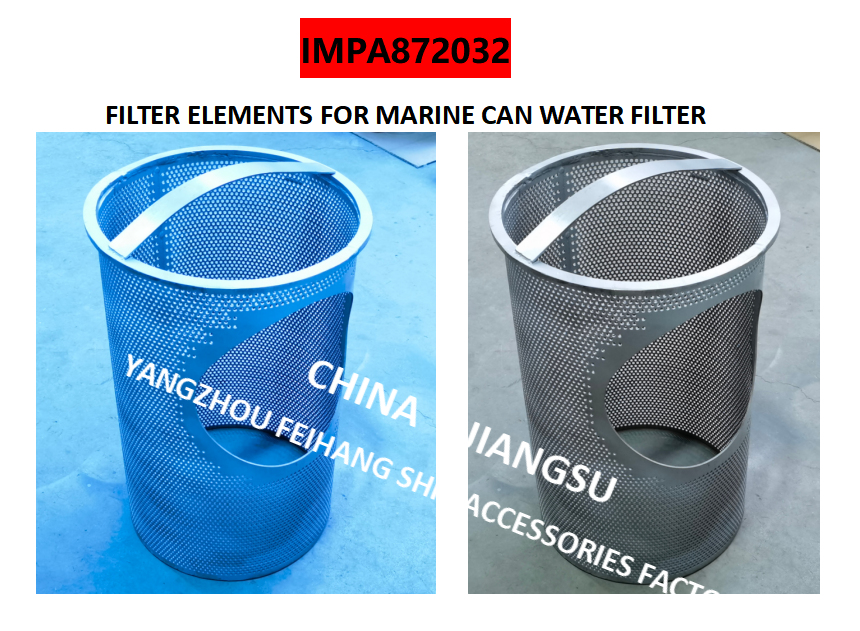

About impa872032 filter elements for marine can water filter
Components of cylindrical water filter - Marine canned water filter element
Ordering process
First of all, we need to determine the relevant dimensions of this water filter element with the customer. In order to measure comprehensively at one time, you can measure according to the model drawings provided by our company:

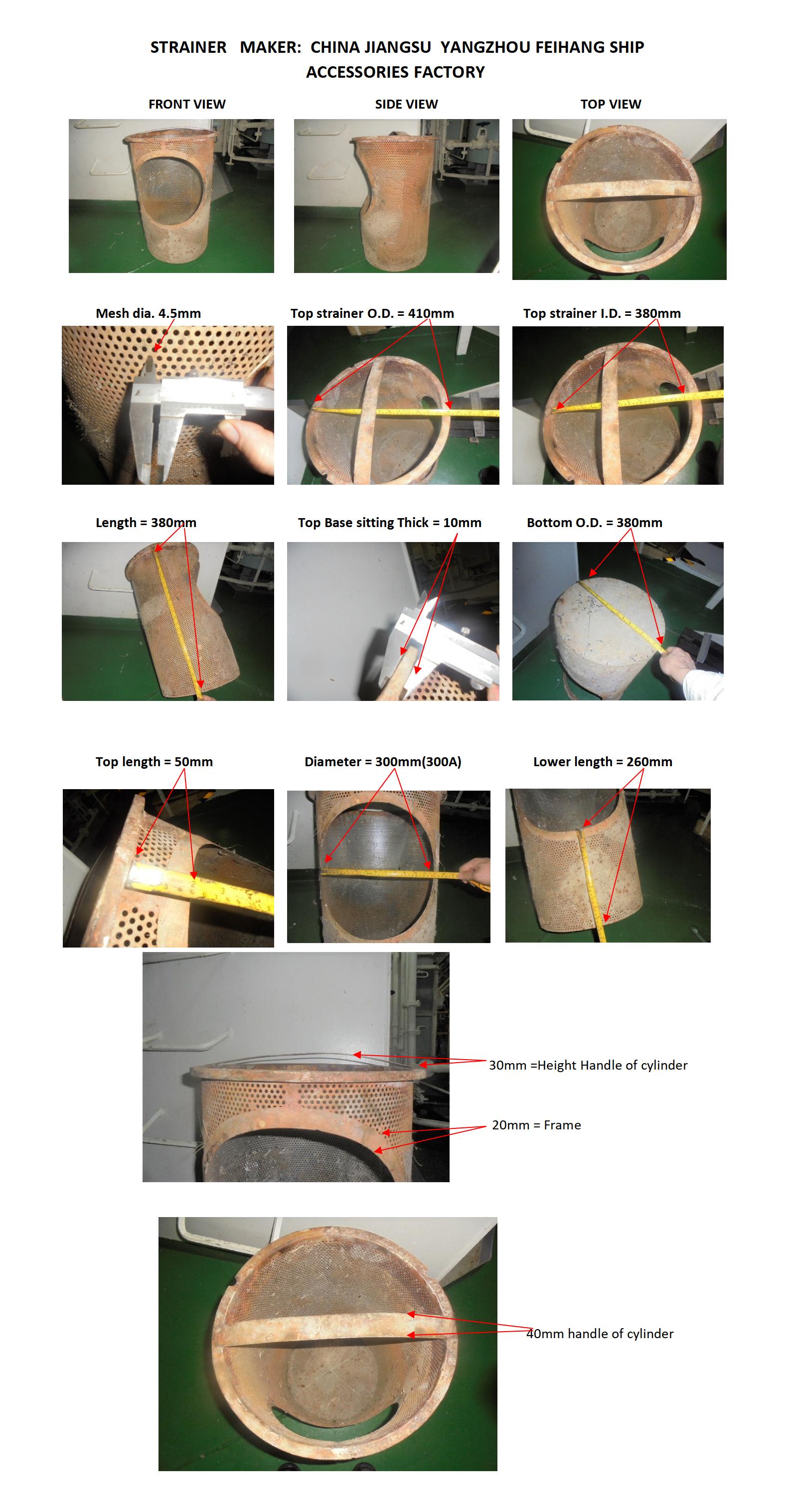

Here, the customer is to measure the model drawings provided by us, and the final data diagram is as follows:

Then we will draw the final production approval drawing according to the customer's measurement data. After we mutually approve the production drawing of the whole water filter drum, we can choose how many wall thickness materials to use to make this filter drum. The normal wall thickness can be selected as follows:

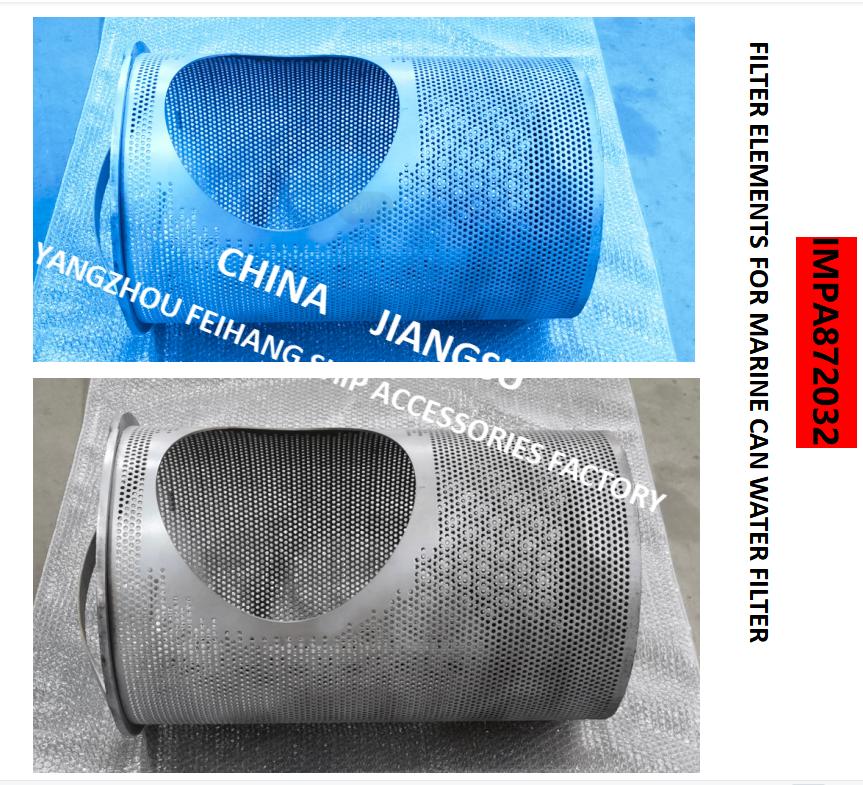

Finally, we produced a brand-new seawater filter barrel for the customer according to the drawings. The detailed physical drawings are as follows:

FILTER ELEMENTS FOR MARINE CAN WATER FILTER
Components of cylindrical water filter - Marine canned water filter element
IMPA872021-IMPA872034

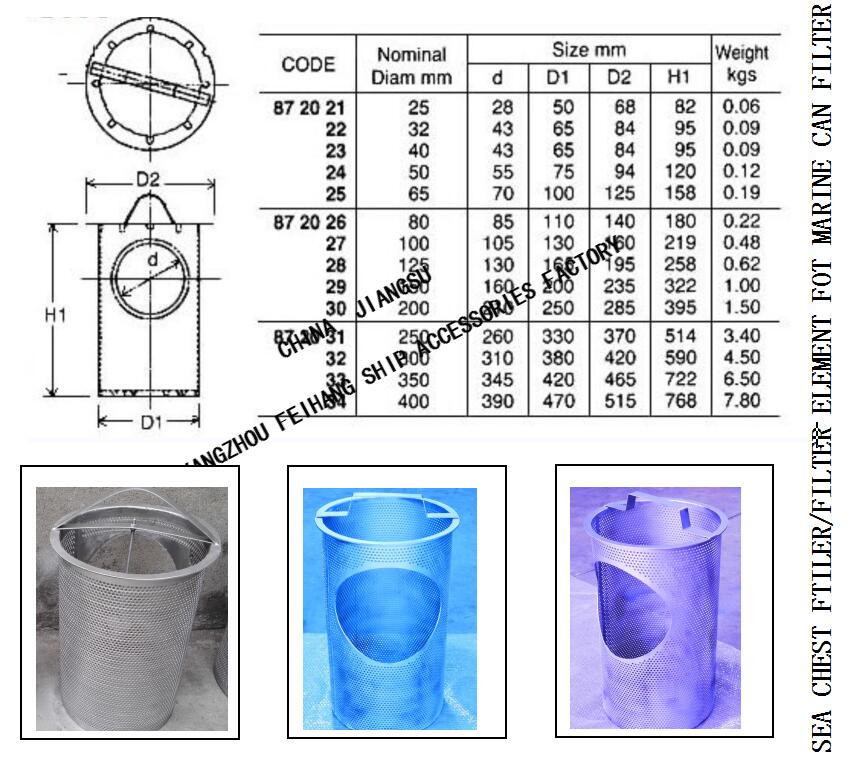

The whole model selection table is as follows

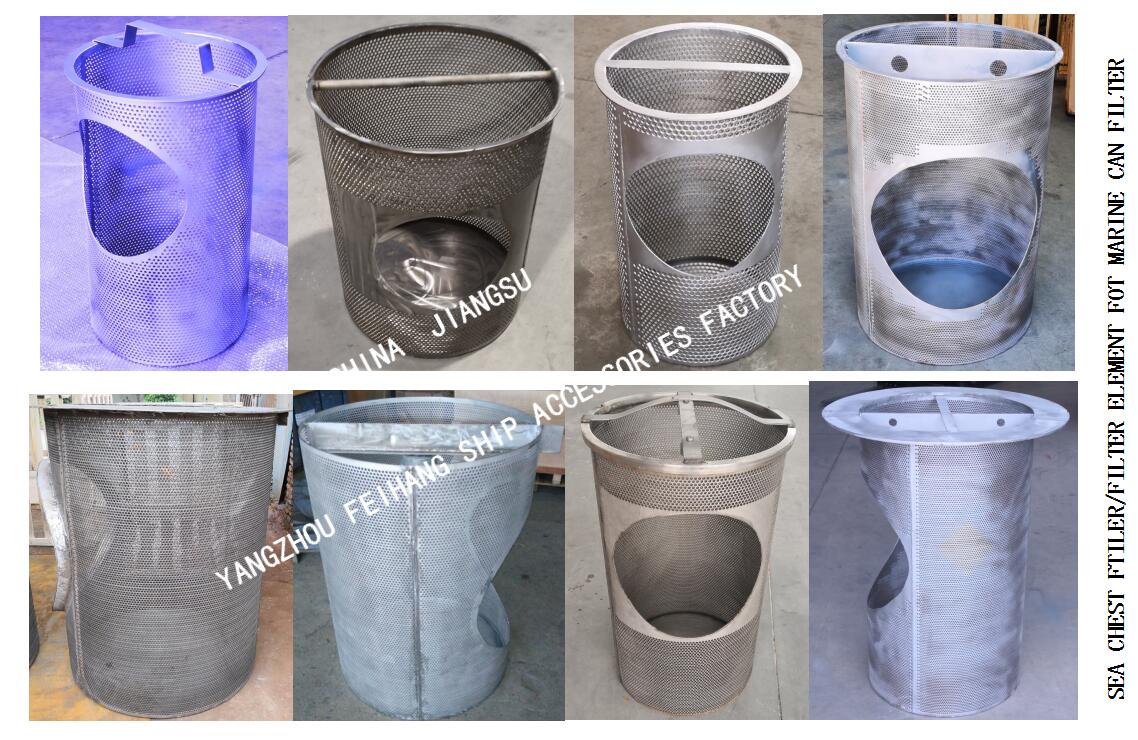

At the same time, our factory undertakes various non-standard filter elements (as shown in the following figure)

Main Sea Chest Filter-Sea Chest Filter-Sea Chest Element

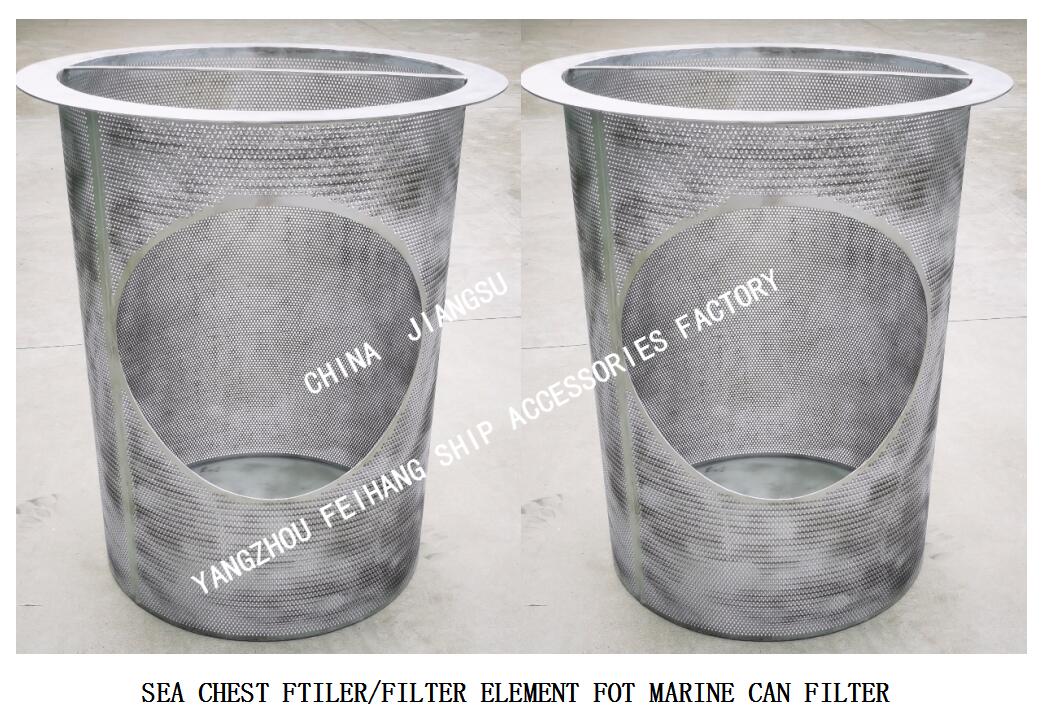

FILTER ELEMENT FOR MARINE CAN WATER FILTER
Marine main subsea water filter-main sea chest filter-subsea valve box filter accessories

Sea Chest Filter-Sea Chest Filter-Sea Chest Element sea water filter/sea door sea water filter:
It is mainly used inside the sea water filter to prevent impurities in the sea water from entering the pump through the sea water filter. The filter element can separate the solid particles and sludge in the liquid, or separate different seawater/fresh water from the particle sand layer, which can protect the normal operation of the seawater filter equipment. When the fluid enters the filter element with a certain specification filter, its impurities are blocked , And the clean fluid flows out through the filter element to make the liquid reach a certain degree of cleanliness. It is mainly composed of a filter plate (filter screen), and the flow area of the filter screen is generally 1.5 to 2 times the flow cross-sectional area of the pipeline.

Main Sea Chest Filter/Sea Chest Strainer/FILTER ELEMENT
Main subsea filter-main sea chest filter-subsea valve box filter
Product detailed parameter table:

Main Sea Chest Filter/Sea Chest Strainer/FILTER ELEMENT
Main subsea filter-main sea chest filter-subsea valve box filter
Note for replacement:

<SEA CHEST STRAINER/FILTER ELEMENT> Size measurement method:

1. According to the old physical measurement method: select the appropriate time, or open the bolt on the top of the filter during the voyage repair stage, and then take out the filter barrel inside the seawater filter, and perform accurate measurement according to the following reference drawings:

2. You can choose according to the specification table of IMPA material encyclopedia:

<SEA CHEST FTILER/FILTER ELEMENT> Material wall thickness selection:
In order to reduce the corrosion of the original filter element inside the seawater filter, and to reduce our maintenance frequency in the future, we can choose a thicker material to customize this original filter element:

<SEA CHEST FTILER/FILTER ELEMENT> Selection of filter precision:

According to the difference of each use part on the ship, the filtration accuracy of the filter barrel of the seawater filter is different, usually: MESH-2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm:

<SEA CHEST FTILER/FILTER ELEMENT FOT MARINE CAN FILTER> handle style selection:
In order to facilitate the maintenance and use of the seawater filter in the future, we can choose a handle device that is easy to operate:

The main subsea filter-main sea thorax filter-subsea valve box filter produced by our company (Yangzhou Feihang Ship Accessories Factory) The main models are:

CB/T497-1994 sedimentation disc filter, sedimentation disc filter barrel
CB/T497-1994 basket filter, basket filter barrel
JIS F7121 Japanese standard cylindrical seawater filter cartridge, subsea valve box filter
IMPA872021-872034 cylindrical sea water filter filter accessories
SEA WATER STRAINER /Sea Chest Strainer
Sea Chest Filter/Sea Water Filter
FILTER ELEMETNT/Filter basket Sea water filter filter basket
Bottom door filter element
Stainless steel sea water filter screen/screen/stainless steel coarse water filter cartridge
Filter Element for Marine Can Water Filter
Sea Chest Filter/Sea Water Filter
