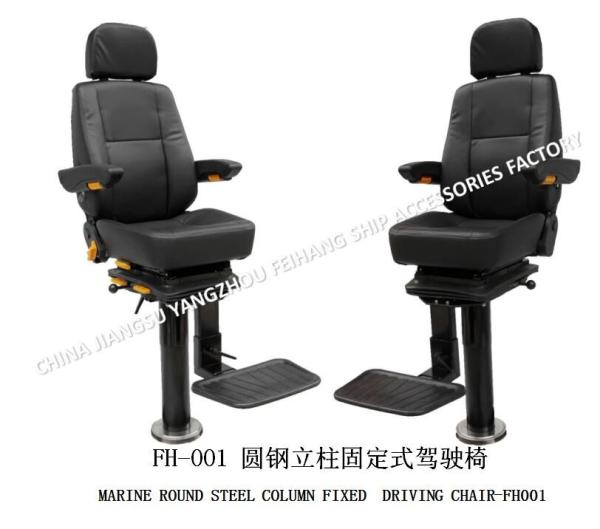

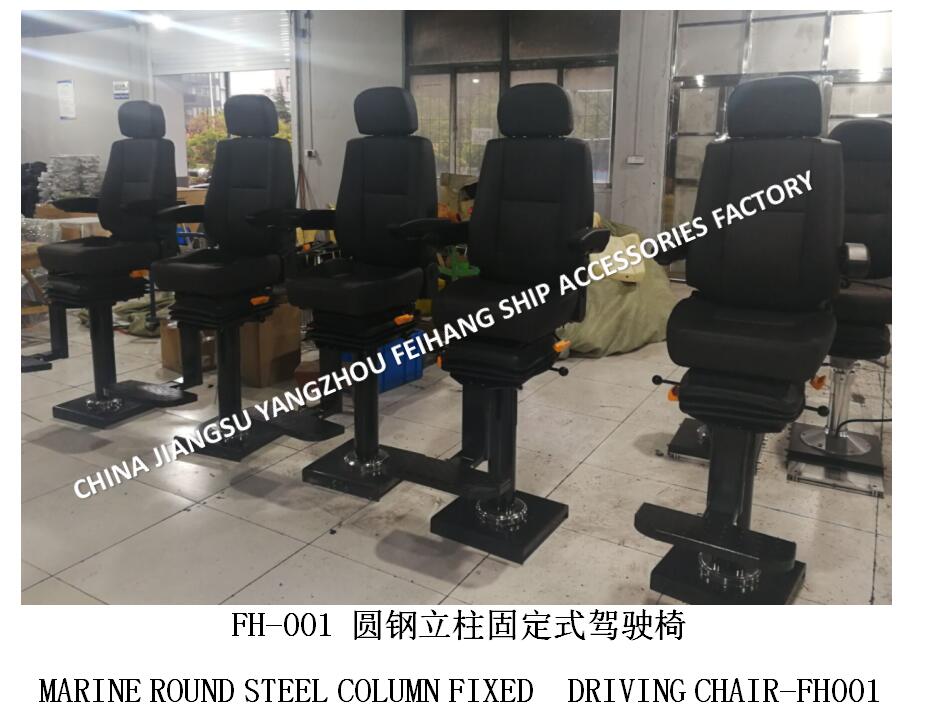

FH-001 Round steel column fixed driving seat
MARINE ROUND STEEL COLUMN FIXED DRIVING CHAIR-FH001

About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product Overview:

Marine FH001 fixed driving seat/round steel column fixed type marine driving seat is a seat that is convenient for the crew chief engineer to drive.

　
About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Technical Parameters:

Design and manufacturing testing standards	cb
Seat material	PU imitation leather/leather
Column material	Round bar
Guide rail and positioning base material	High-strength aluminum alloy
Foot pedal	Synthesis of steel plate core and environmental protection rubber products;

Warship driving chair-cab sliding type driving chair Function description:

1. Ergonomic design; 2. The seat can move integrally on the high-intensity double slide rail; 3. Adjustable backrest and headrest; 4. Seat height can be adjusted by angle; 5. The seat can move back and forth; 6. Foldable/adjustable angle type comfortable seat armrest; 7. The seat can rotate 360 degrees, multi-point positioning; 8. The height of the foot pedal is adjustable/foldable; 9. The vertical column can be lifted up and down vertically;

About marine FH001 fixed driving seat/round steel column fixed type marine driving seat:

1. The upper part of the seat of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can be moved forward and backward by 120mm, the height is adjusted by 60mm, and the inclination angle of the seat surface is ±12°;

2. Seat FH001 fixed driver's seat/round steel column fixed ship's driver's seat backrest can be adjusted at an angle of 85°-135°, the headrest is adjusted up and down by 50mm, and the armrest is positioned at multiple points;

3. Seat pedal hydraulic lifting adjustment range of FH001 fixed driving chair/round steel column fixed marine driving chair is 0-150mm;

4. The seat of the marine FH001 fixed driving chair/round steel column fixed type marine driving chair can be rotated 360°, and the multi-point positioning control;

5. The seat pedal of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can be returned 90°, and the up and down position adjustment range is 0-50mm;

6. The seat of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can withstand the torque of 150FT.LB or more, reaching the AD level standard;

About marine FH001 fixed driving chair / round steel column fixed type marine driving chair:

Yangzhou Feihang Ship Accessories Factory is a production enterprise specializing in marine pipe fittings, marine hydraulic valve parts and marine interior armored products.

The marine accessories produced by our company are complete in specifications, such as cast iron, cast steel, bronze and stainless steel, which are widely used in ships, oil and offshore platforms.

All products implement one-stop production line operation, and strictly implement the ISO9001-2000 international quality management system standards, and carry out standardized production and quality inspection.

Companies adhering to the "integrity management, mutual benefit, and common development" business purposes and "excellent products, sincere service, customer satisfaction," the quality management policy, has won the trust of our customers, is now with a number of shipyards, ship owners, and ships The unit has established long-term cooperative relationships, and its products are sold well all over the country and exported to Singapore, Taiwan, Japan, India, South Africa and other countries and regions. And has won the praise of many ship owners at home and abroad. In order to meet the needs of the market and the continuous expansion of the company's business, we are moving towards the goal of “more comprehensive, more professional and better quality” and strive to build one of the ship accessory suppliers recognized by more customers at home and abroad.
